Pro Ceiling Soundproofing System

Best Suited For

  • Timber or concrete ceilings where the main issue is loud airborne noise, such as: Music / bass Loud TV Shouting / louder voices
  • Projects where you want a higher performance ceiling build-up and are comfortable with a more involved installation

Use the Soundproofing System Calculator below to enter your area and get the correct quantities — then simply add everything to your cart.

Fast Shipping

Stress Free

100% Eco-friendly

packaging

30 Day Money Back
Guarantee

High Performance Ceiling Soundproofing for Loud Noise and Music

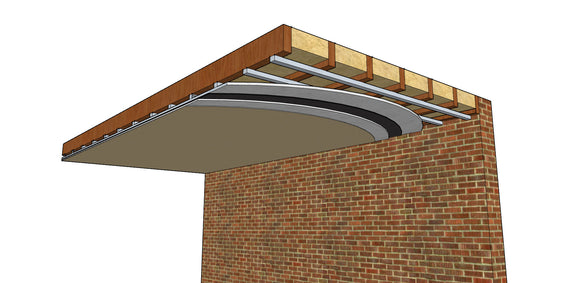

Our Pro Ceiling Soundproofing System – Timber or Concrete is our highest performance ceiling build-up for situations where you’re dealing with loud airborne noise, including music and bass, and want a serious upgrade. This system uses MuteClip and MuteClip Channel to decouple the new ceiling from the structure, combined with 10kg MLV and two layers of 15mm acoustic plasterboard to add mass and improve sound reduction.

To make things easier, our online calculator works out the quantities required for your project, with an additional 5% already allowed for waste. Please note: we supply everything in this system except the plasterboard, which you source locally.

Designed for Timber or Concrete Ceilings

This Pro system is designed for customers who need more than “add mass and overboard” solutions can typically deliver. The key difference is decoupling: the MuteClip system creates a resilient connection that helps reduce vibration transfer into the new ceiling.

The build-up consists of:

The finished build-up is approximately 80mm overall.

Important Supply Information

All components required for this system are supplied by us as part of the calculator output. You do not need to source additional system materials separately apart from suitable fixings.

How the System Works

This system improves ceiling sound insulation using three key mechanisms:

  • Decoupling using MuteClip & MuteClip Channel: reduces vibration transfer from the existing ceiling/structure into the new ceiling
  • Adding mass using 10kg MLV 15mm Acoustic Plasterboard: dense layers help reduce airborne sound transmission, including louder noise
  • Airtightness with Acoustic Sealant Jointing Tape: reduces sound leakage at edges and joints

What We Supply

  • MuteClip and MuteClip Channel
  • 1 layer of 10kg MLV (Soundproofing Mat)
  • 2 layers of 15mm acoustic plasterboard
  • AC95 Acoustic Sealant
  • Jointing Tape
  • Contact Adhesive

We also include an additional 5% allowance for waste in the calculated quantities.

Your Soundproofing System Calculator


Key Benefits

  • Highest performance ceiling option for loud noise and music
  • Decoupled ceiling system using MuteClip + Channel
  • High mass build-up with 10kg MLV + double acoustic plasterboard
  • Suitable for timber or concrete ceilings
  • DIY achievable for competent installers (experienced DIY)
  • Calculator provides a quick material estimate
  • Includes a 5% waste allowance in the calculated quantities

Important Notes

  • This is an experienced DIY system.
  • Correct clip spacing, channel layout, and fixing selection matter for performance.
  • Results will vary depending on the existing ceiling construction, joist spacing, void depth, and flanking paths (walls, floors, services).
  • Sealant quantities are an approximation only and should be treated as a guide.
  • The calculator is provided as a guide only, and final quantities should always be checked before ordering.
  • If there are recessed lights, services, or penetrations, these can significantly reduce performance unless treated correctly.

Installation Summary

  • Set out battens (if required) and fix to concrete using anchor bolts (concrete ceilings only)
  • Fix MuteClips to joists or battens using 5mm x 60mm coarse thread wood screws
  • Install MuteClip Channels and secure overlaps using 20mm steel self-tapping screws
  • Fix the first layer of 15mm acoustic plasterboard to channels using 32mm fine thread drywall screws
  • Install 10kg MLV as part of the ceiling build-up
  • Fix the second layer of 15mm acoustic plasterboard using 50mm fine thread drywall screws
  • Tape joints and seal perimeter gaps with AC95 for airtightness

For a more detailed installation guide click here.

Fixings List

  • Battens to Concrete: Anchor Bolt
  • MuteClip to Battens or Joists: 5mm x 60mm Coarse Thread Wood Screw
  • 1st Plasterboard to Channel: 32mm Fine Thread Drywall Screw
  • 2nd Plasterboard to Channel: 50mm Fine Thread Drywall Screw
  • MuteClip Channel Overlap: 20mm Steel Self-Tapping Screw

Calculator Disclaimer

This calculator is intended as a guide only. Advanced Acoustics will not be held responsible for any decisions made as a result of using this calculator.
