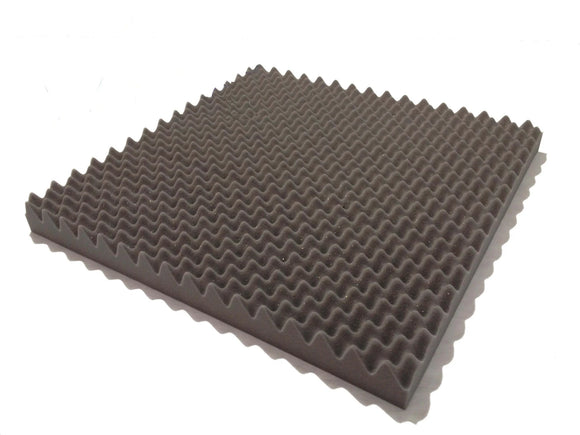

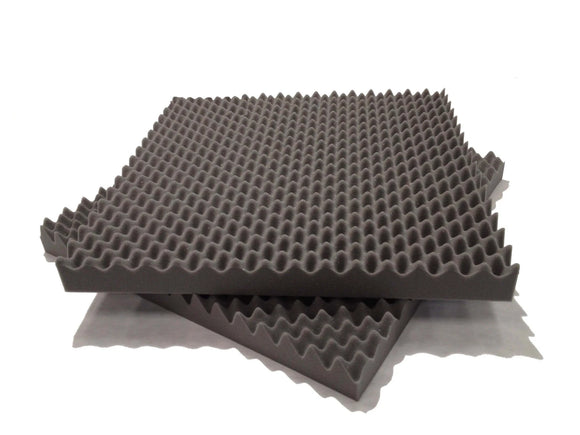

Advanced Acoustics 30" x 30" F.A.T. PRO Acoustic Studio Foam Tile Pack
The Advanced Acoustics F.A.T. PRO 30" is a 75mm open-cell polyurethane acoustic foam tile in a precision cut egg-crate profile, measuring 762mm × 762mm (30" × 30"). The tile achieves NRC 0.90 (Sound Absorption Class B), providing high-performance broadband absorption across the mid and high frequency range with strong low-mid performance. Each pack contains 6 tiles, covering 3.48m² (37.5sqft) of wall or ceiling surface.
Absorption: 0.55 at 250Hz, 0.88 at 500Hz, 1.06 at 1kHz, 1.09 at 2kHz, and 1.10 at 4kHz. The egg-crate profile — alternating peaks and valleys across the tile face — is the original acoustic foam format. The 30" is the largest tile size in the F.A.T. PRO range, covering the most wall area per tile and reducing the number of installation pieces for a given treatment area. Available in Mid Grey. Manufactured in the UK.
Applications
Professional recording studios and control rooms — Class B broadband treatment.
The F.A.T. PRO 30" at NRC 0.90 (Class B) provides comprehensive broadband absorption from 500Hz upward, with the 0.55 at 250Hz delivering strong low-mid frequency performance. The large 30" × 30" format covers significant wall area per tile, making it efficient for treating the larger wall surfaces of professional studio and control room environments with fewer installation pieces. Install on primary reflection points — side walls, rear wall, and ceiling. Use the Coverage Calculator to determine the number of packs required.
Large wall areas — efficient coverage.
The 30" tile format covers the most wall area per tile in the F.A.T. PRO range, making it the most efficient option for treating large, uninterrupted wall surfaces where a larger pattern scale is acceptable. The 6-tile pack covering 3.48m² suits full-wall installations in studios and rehearsal rooms.
Vocal booths and isolation rooms.
The 75mm depth provides absorption across the full vocal frequency range — 0.88 at 500Hz through to 1.10 at 4kHz — reducing coloration and producing a clean vocal capture. The 0.55 at 250Hz helps control the low-frequency build-up common in small enclosed spaces.
Product Benefits
NRC 0.90 / Sound Absorption Class B — high-performance broadband absorption.
The 75mm egg-crate foam core achieves NRC 0.90 (Class B), with absorption of 0.55 at 250Hz, 0.88 at 500Hz, 1.06 at 1000Hz, 1.09 at 2000Hz, and 1.10 at 4000Hz. The 0.55 at 250Hz delivers strong low-mid frequency absorption, making the F.A.T. PRO effective across a broad frequency range. The acoustic performance is consistent across all three tile sizes in the F.A.T. PRO range; tile size selection is determined by the preferred installation pattern scale and wall area.
Egg-crate profile — classic F.A.T. format, cut for consistent dimensions.
The egg-crate profile — peaks and valleys alternating across the tile face — is the original acoustic foam tile format and one of the most recognisable shapes in studio acoustic treatment. Each tile is cut to consistent peak height and valley depth across every tile in the pack, producing a uniform appearance across the installed surface.
Specification and compliance.
30kg/m³ foam density. Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (Fire)(Safety) Regulations 1988 (amended 1989). Tile size 762mm × 762mm × 75mm (30" × 30" × 3"). 6 tiles per pack, 3.48m² (37.5sqft) coverage. Mid Grey. Manufactured in the UK and shipped uncompressed from stock.
Installation
Plan the tile layout before beginning installation. Sketch the intended pattern on paper and mark the layout on the wall or ceiling surface using pencil, masking tape, or a laser level. Due to the geometry of the egg-crate profile, leaving a small, consistent gap between each tile produces the best visual result — the gap defines the tile edges and prevents the peaks of adjacent tiles from compressing against each other during installation. Distribute tiles evenly across the treatment area rather than concentrating them in a single large cluster; even distribution provides more consistent absorption coverage across the room.
Apply Advanced Acoustics Contact Adhesive to both the back of the tile and the mounting surface. Apply a band of adhesive around the perimeter of the tile and 50–75% coverage of the remaining surface area; repeat the equivalent coverage on the wall. Allow the adhesive to become touch-dry before bringing the surfaces together — contact adhesive bonds on contact, so position the tile carefully before pressing it to the wall. Avoid overspray onto the tile face or surrounding wall surface; use masking tape on the wall to protect adjacent areas. If adhesive webbing contacts the tile face, allow it to dry fully before attempting to remove it — in most cases it can be peeled away cleanly once dry. The adhesive is solvent-based. Ensure adequate ventilation throughout the installation — keep doors and windows open.
For a temporary or demountable installation, mount tiles onto 6mm MDF or plywood sheet to create panels, then hang the panels using D-rings and picture hooks. For ceiling-mounted panels, use four mirror plates per panel. This approach allows panels to be removed and repositioned without damage to the wall or ceiling surface.
The Technical Details
| Product Name | F.A.T. PRO 30" Acoustic Tile Pack |
| Product Size | 30" x 30" x 3" (762mm x 762mm x 75mm) |
| Tiles Per Pack |
6 |
| Area Covered Per Pack | 37.5sqft (3.48sqm) |
| Sound Absorption Class | B |
| Noise Reduction Coefficient |
0.90 |
| Absorption at 250Hz | 0.55 |
| Absorption at 500Hz | 0.88 |
| Absorption at 1000Hz | 1.06 |
| Absorption at 2000Hz | 1.09 |
| Absorption at 4000Hz | 1.10 |
| Product Colour | Mid Grey |
| Product Weight | |
| Fire Classification | Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989) |
| Acoustic Foam Density | 30kg/m3 |
